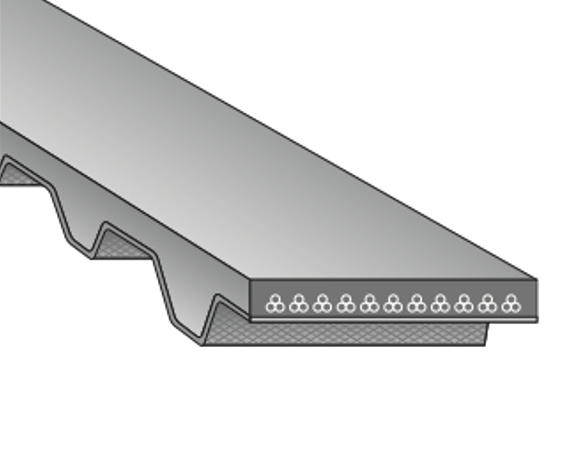

Synchronous Belts

Photo 2

Features

  • Non-slip
    Accurate tooth dimensions and minimal elongation virtually eliminate slippage and speed variation.
  • No maintenance
    No lubrication is required.
  • No high initial tension, thus keeping the bearing load very low.
  • Space saving
    Utilizes small pulleys and short center distances.

Dimensions

Type P W H1 H2 θ
MXL Mini Synchro 2.032mm
(0.080") 		(0.76)
0.030		 (1.1)
0.043 		(0.51)
0.020 		40°
XL Extra Light 5.08mm
(0.200") 		(1.35)
0.054		 (2.25)
0.09 		(1.25)
0.050 		50°
L Light 9.525mm
(0.375") 		(3.2)
0.128		 (3.5)
0.14 		(1.9)
0.075 		40°
H Heavy 12.7mm
(0.500") 		(4.4)
0.175		 (4.3)
0.17 		(2.3)
0.090 		40°
XH Extra Heavy 22.225mm
(0.875") 		(8.0)
0.313		 (11.3)
0.44 		(6.3)
0.250 		40°
XHH Double Extra Heavy 31.75mm
(1.250") 		(12.2)
0.477		 (15.8)
0.62 		(9.6)
0.375 		40°
