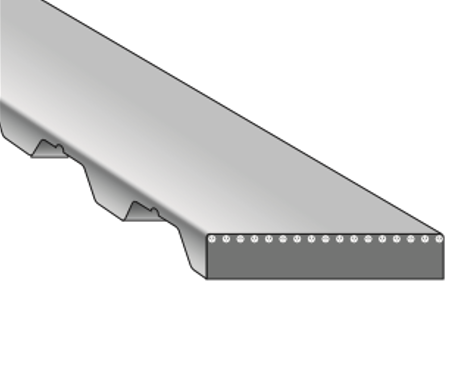

Bancollan Synchronous Belts

Photo 2

Features

  • Non-slip
    Accurate tooth dimensions and steel cord ensures minimal stretching, no slippage and constant speeds.
  • High oil and ozone resistance.
  • Special backside surfaces are available.
    Bando can mold virtually any special configuration on the belt's backside surface.

Dimensions

Type P W H1 H2 θ
MXL 2.032mm
(0.080") 		0.76mm
(0.030") 		1.2mm
(0.043")		 0.51mm
(0.020") 		40°
XL 5.08mm
(0.200") 		1.35mm
(0.053") 		2.25mm
(0.089")		 1.25mm
(0.049") 		40°
L 9.525mm
(0.375") 		3.2mm
(0.126") 		3.5mm
(0.138")		 1.9mm
(0.075") 		40°
T2.5 2.5mm
(0.98") 		1.0mm
(0.039") 		1.3mm
(0.051")		 0.7mm
(0.028") 		40°
T5 5.0mm
(0.197") 		1.80mm
(0.071") 		2.2mm
(0.087")		 1.2mm
(0.047") 		40°
T10 10.0mm
(0.394") 		3.5mm
(0.138") 		4.5mm
(0.177")		 2.5mm
(0.098") 		40°
