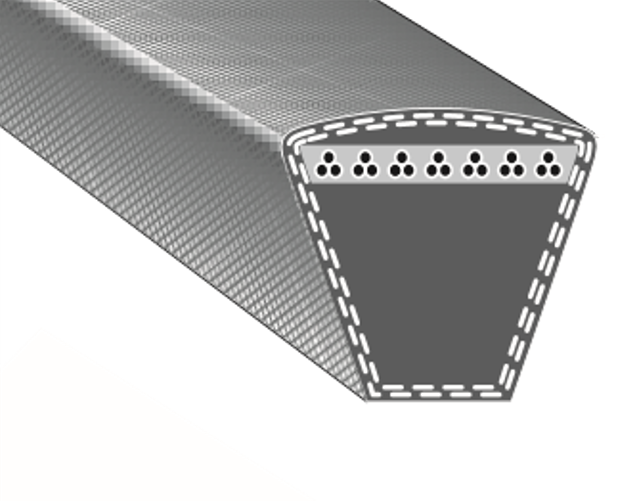

Narrow V-Belts SP-Type
Features
- High horsepower rating
Requires about 1/3 of the space needed by traditional multiple V-Belt drives. - Long life
- High heat and oil resistance
- Length stability. A matched set of Bando Narrow V-Belts for multiple belt drives retains superior uniformity under tension. A Bando matched set remains perfectly matched even after long periods of storage.
- Compared with conventional V-Belts. Bando Narrow V-Belts are can handle high loads.
Dimensions
Type | Top width a | Thickness b | Angle θ |
---|---|---|---|
SPZ | 9.5 | 8.00mm | 40° |
SPA | 12.5mm | 10.0mm | 40° |
SPB | 16.0mm | 13.5mm | 40° |
SPC | 20.0mm | 18.0mm | 40° |
