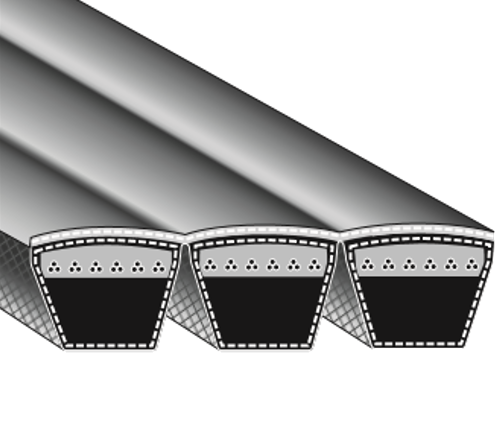

Power Scrum (V-Belts Types)
.png)
Features + Benefits
- Permanent matched set.
- No lateral whip, spin, or turn over
- Deep pulley grooves are not required even on horizontal drives.
- Heat and oil resistant.
Dimensions
| Type | Top width of one belt a | Thickness b | Angle θ | Pitch between two belts e |
|---|---|---|---|---|
| A | 12.7mm | 10.0mm | 40 | 15.0mm |
| B | 16.7mm | 13.0mm | 40 | 19.0mm |
| C | 22.2mm | 16.0mm | 40 | 25.5mm |
| D | 31.7mm | 21.5mm | 40 | 37.0mm |
*For more than 6ribs we use a combination of belts.
| Number of ribs | Standard combination | Number of ribs | Standard combination |
|---|---|---|---|
| - | - | 11 | 4+3+4 |
| 2 | 2 | 12 | 4+4+4 |
| 3 | 3 | 13 | 4+5+4 |
| 4 | 4 | 14 | 5+4+5 |
| 5 | 5 | 15 | 5+5+5 |
| 6 | 3+3 | 16 | 4+4+4+4 |
| 7 | 3+4 | 17 | 4+4+5+4 |
| 8 | 4+4 | 18 | 5+4+4+5 |
| 9 | 4+5 | 19 | 5+4+5+5 |
| 10 | 5+5 | 20 | 5+5+5+5 |
