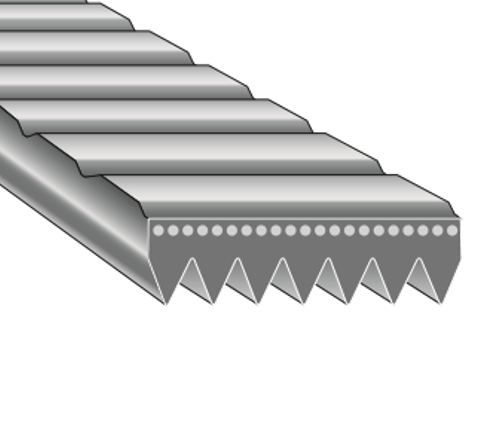

Bancollan PolyBanrope
Features + Benefits
- Suitable for fixed center distance applications. The belt's elasticity allows for easy installation on fixed center distance pulleys without tools.
- Withstands high shock load.
Polyamid tensile members protect belts from shock load damage, making them well-suited for small machines and other high speed/high shock load applications. - High speed.
- Space saving
Small pulley requirement permits smaller, more compact designs.
Dimensions
(H type)
(J type)
| Type | Pitch P |
Total thickness a |
Rib thickness b |
Angle θ |
|---|---|---|---|---|
| H | 1.6mm (0.063") |
2.5mm (0.098") |
1.0mm (0.039") |
40° |
| J | 2.4mm (0.094") |
4.0mm (0.157") |
2.3mm (0.091") |
40° |
