Back to Industrial Power Transmission Belt

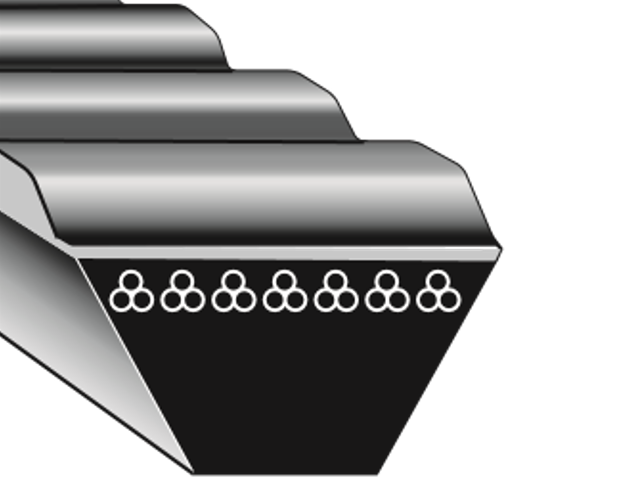

Banflex
Features + Benefits
- Space saving
High horsepower rating and small pulley requirements permit compact designs. - Smooth running
Belt runs very smoothly because of ground side wall. - High speed drive
Because they are very light weight, Banflex belts can be driven at high speeds without excessive vibration or wear.
Dimensions
| Type | Top width a | Thickness b |
|---|---|---|
| 3M | 3.0mm (0.12") | 2.1mm (0.08") |
| 5M | 5.0mm (0.20") | 3.3mm (0.12") |
| 7M | 7.0mm (0.28") | 5.3mm (0.20") |
| 11M | 11.0mm (0.43") | 6.9mm (0.28") |
