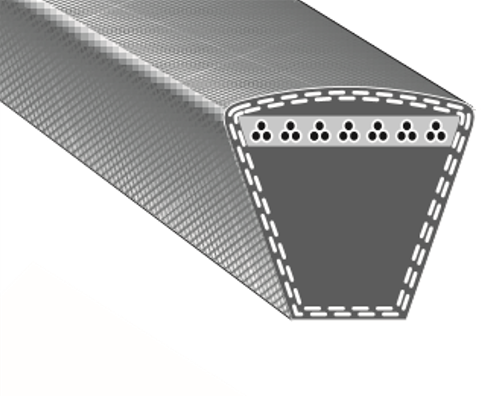

Power Ace
Features
- High horsepower rating
Requires about 1/3 of the space needed by traditional multiple V-Belt drives. - Long life
- High heat and oil resistance
- Length stability. A matched set of Bando POWER ACE for multiple belt drives retains superior uniformity under tension. A Bando matched set remains perfectly matched even after long periods of storage.
- By increasing the angle of the canvas weave from 90˚ to 120˚, transmission loss is reduced.
Dimensions
| Type | Top width a | Thickness b | Angle θ |
|---|---|---|---|
| 3V | 9.5mm (0.38") | 8.00mm (0.32") | 40° |
| 5V | 16.0mm (0.62") | 13.5mm (0.54") | 40° |
| 8V | 25.5mm (1.0") | 23.0mm (0.88") | 40° |
