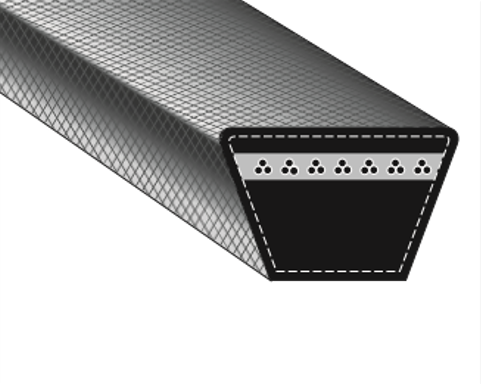

Fractional H.P. V-Belts (FHP) and Multiple V Belts
 and Multiple V Belts.png)
Features
FHP V-BELTS
Bando FHP V-Belts are built for maximum tension control, drive uniformity, and long life, with minimum heat build-up and stretching on low horsepower electric motoros and gasoline engines. They are designed for high speed and short center distance.
MULTIPLE V-BELTS
For multiple drive, high speed, and high torque drives on light or heavy industrial or automotive machinery. Bando Multiple V-Belts have exceptional length stability and drive uniformity. Rigorous testing has shown these premium quality belts to have twice the service life and significantly greater transmission capacity than most other multiple V-Belts.
Dimensions
| Top width a | Thickness b | Angleθ | ||
|---|---|---|---|---|
| FHP | ||||
| 3L | 10.0mm (0.38") | 5.5mm (0.22") | 40° | |
| 4L | 13.0mm (0.50") | 8.0mm (0.31") | 40° | |
| 5L | 17.0mm (0.66") | 9.0mm (0.38") | 40° | |
| Multiple | ||||
| M | 10.0mm (0.38") | 5.5mm (0.22") | 40° | |
| A | 12.7mm (0.50") | 8.0mm (0.31") | 40° | |
| B | 16.7mm (0.66") | 10.7mm (0.41") | 40° | |
| C | 22.2mm (0.88") | 13.5mm (0.53") | 40° | |
| D | 32.0mm (1.25") | 20.0mm (0.75") | 40° | |
| E | 40.0mm (1.50") | 25.5mm (0.91") | 40° |
