Bancollan Long Synchronous / STS Belts (LSB-U)
Features + Benefits
The polyurethane construction of these long span belts make them ideally suited for synchronous transmission and conveyance in food processing machinery and other applications requiring a clean, dust-free drive.
- Endless
Long-span belts capable of synchronous transmission and synchronous conveyance. - Open-end
Capable of accurate reciprocating motion in indexing applications.

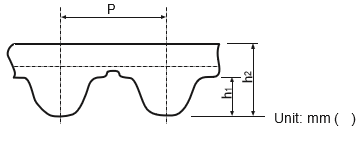

Dimensions
| Type | P | h1 | h2 |
|---|---|---|---|
| S2M | 2.00 | 0.76 | 1.40 |
| S3M | 3.00 | 1.14 | 2.00 |
| S3M | 5.00 | 1.81 | 3.81 |
| S8M | 8.00 | 2.85 | 5.00 |

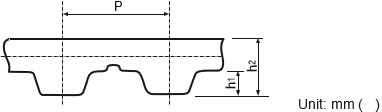

| Type | P | h1 | h2 |
|---|---|---|---|
| XL | 5.080 | 1.25 | 2.25 |
| L | 9.525 | 1.90 | 3.50 |
| H | 12.700 | 2.30 | 4.30 |
| T5 | 5.00 | 1.20 | 2.20 |
| T10 | 10.00 | 2.50 | 4.50 |
