Agricultural V-Belts Red S Ⅱ
Features + Benefits
- Designed specifically for reverse-bend drives by positioning tensile members closer to the neutral axis and by making the belt a little thinner than conventional multiple V-Belts A, B, & C sections.
- Particularly suitable for agricultural machinery such as combine harvesters and garden tillers where belts are often driven with a backside idler.

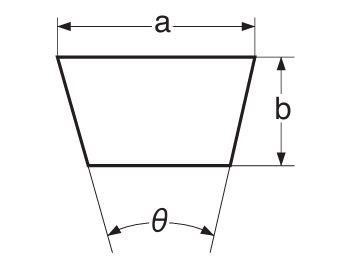

Dimensions
| Type | Top width a | Thickness b | Angle θ |
|---|---|---|---|
| SA | 12.7mm (0.5") | 7.0mm (0.27") | 40° |
| SB | 16.7mm (0.67") | 9.0mm (0.35") | 40° |
| SC | 22.2mm (0.87") | 11.0mm (0.43") | 40° |
